MODELS AVAILABLE

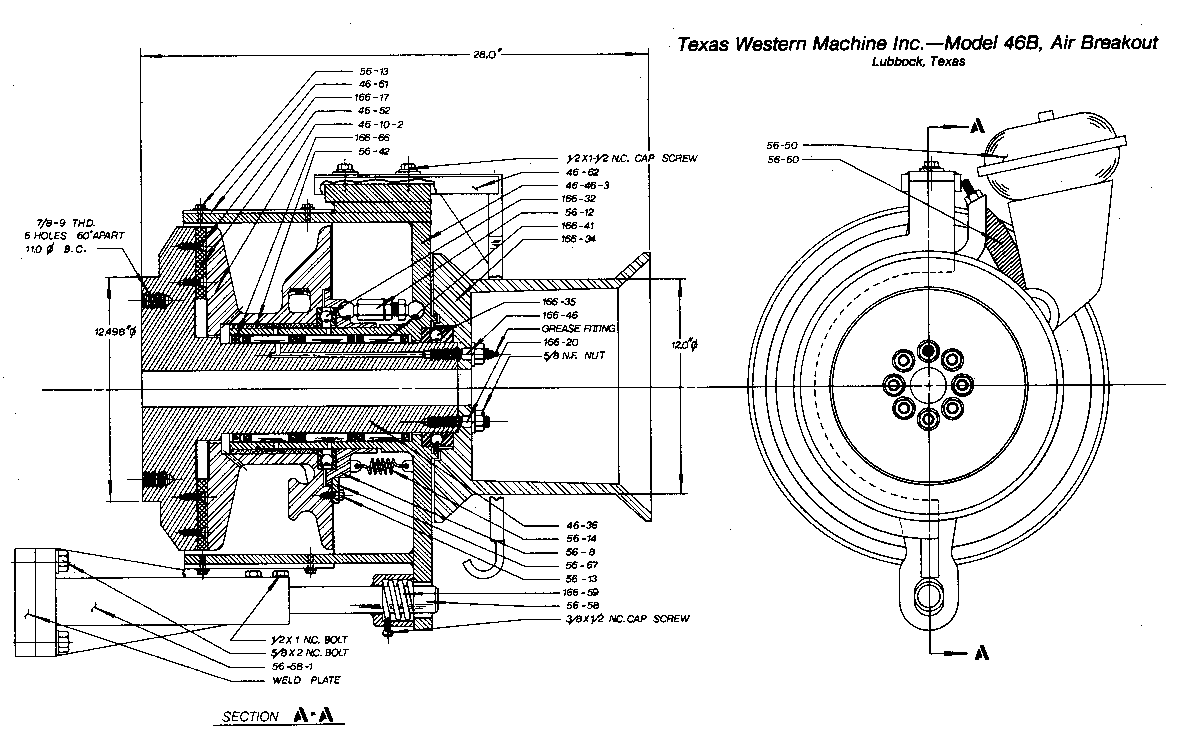

Model 46B --
Air Breakout
Model 46SM --
Mechanical Spinner
Model 56B --
Air Breakout
Model 58S --
Air Spinner
Model 66S --
Spinning Cathead
Model 166S --
Breakout Cathead
For a larger image... click HERE.

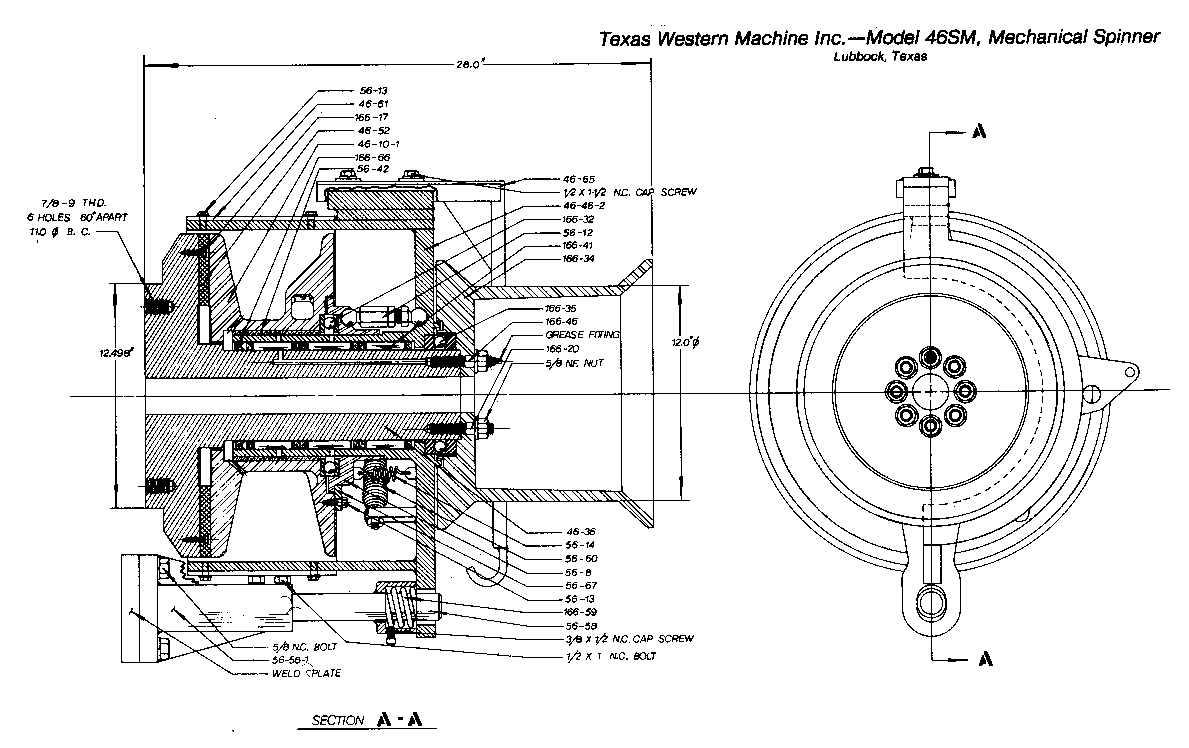

Model 46SM -- Mechanical
Spinner
The Model 46 Cathead is a heavy duty unit with a cam operated clutch to handle your toughest jobs. The clutch has a 16" friction facing, giving it 122 sq. inches of friction surface.
For a larger image... click HERE.
For a larger image... click HERE.

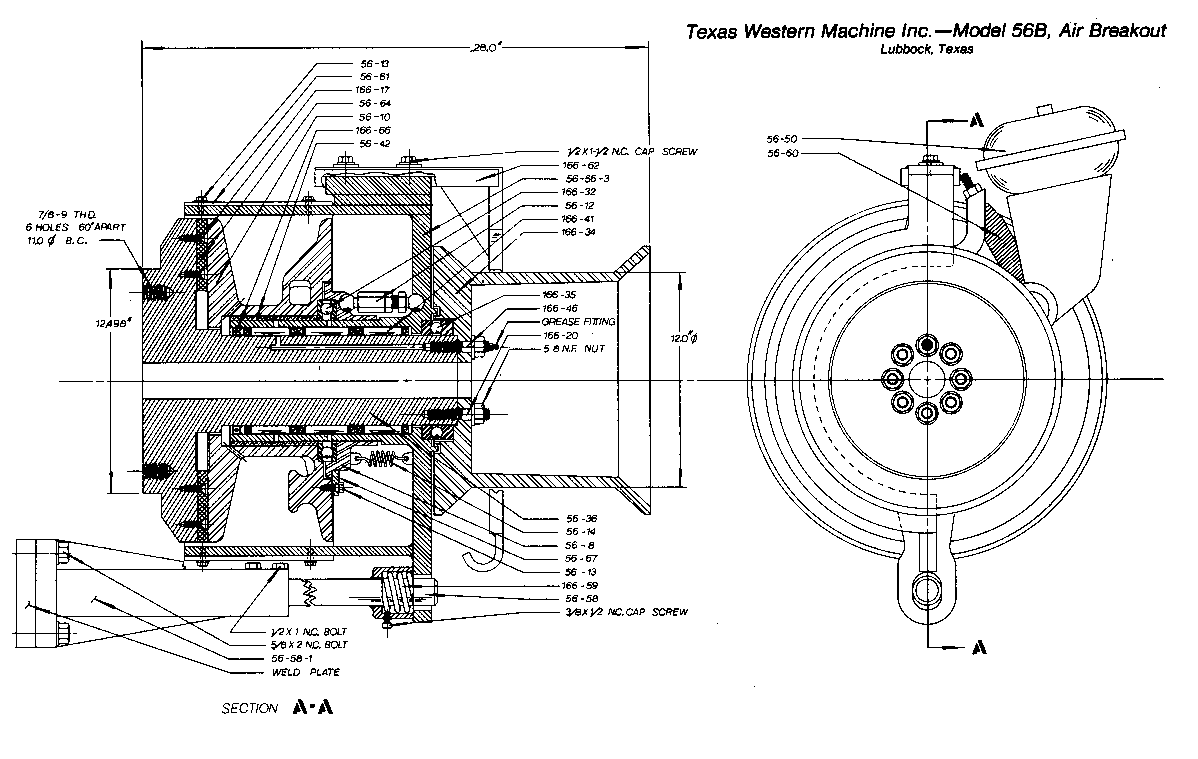

The Model 56 Cathead is a heavy duty unit with a cam operated clutch to handle your toughest jobs. The clutch has an 18" friction facing,giving it 175 sq. inches of friction surface..
For a larger image... click HERE.

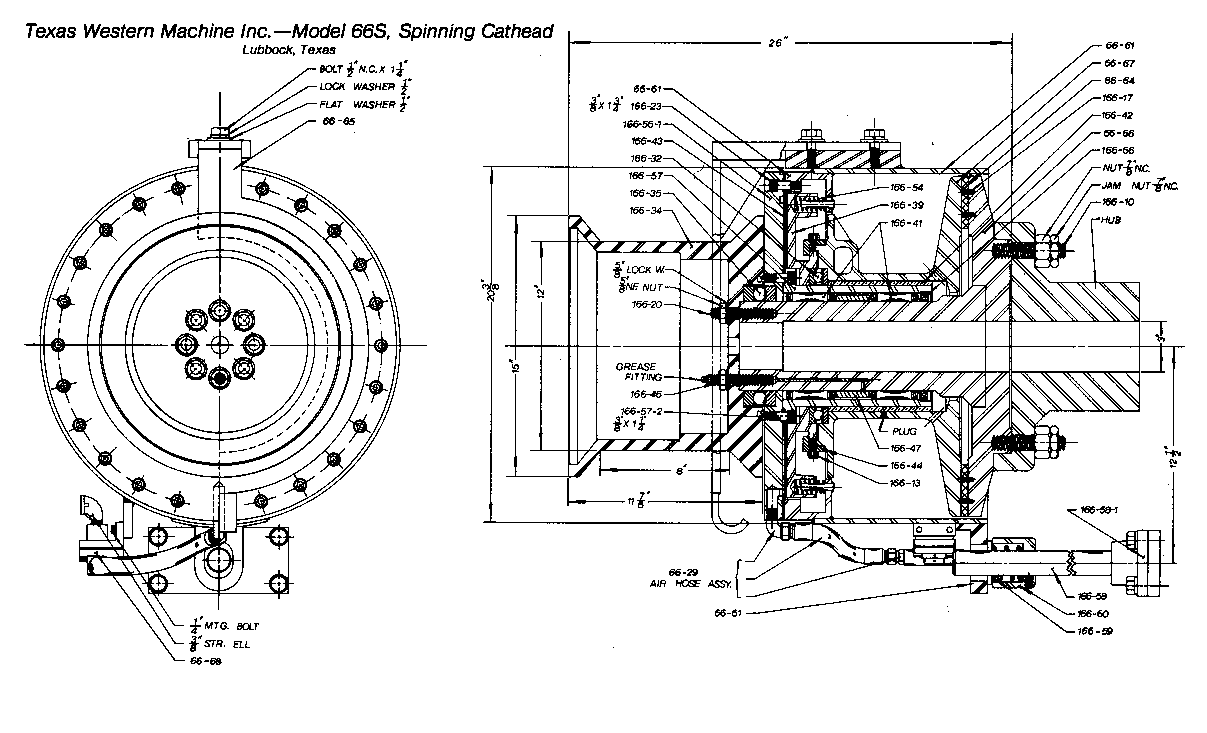

These Torque-Tite Catheads are fully enclosed, with clutches build inside the cathead itself. The spinning cathead has a 19 ½" friction facing, giving the cathead 155 sq. inches of friction surface. The Torque-Tite uses a high coefficient lining made with 7022 compound, with a .395 coefficiency of friction from 100º to 600º Fahrenheit.
